Yog lawm,5086 aluminiumyog qhov tseeb khoov tau, tshwj xeeb hauv nwsannealed ("O" temper)daim ntawv, ua rau nws zoo tagnrho rau daim ntaub ntawv uas yuav tsum tau khoov, stamping, thiab lwm yam precision forming txheej txheem. HauvO kub, 5086 txhuas exhibits zoo heev formability nrog ib tug tsawg kawg nkaus khoov vojvoog ntawm 1t1t1t (qhov twg ttt sawv cev rau cov thickness ntawm cov khoom).
Txawm li cas los xij, raws li cov txhuas ua haujlwm txias ua haujlwm kom muaj zog (hauv tempers xws liH32, H34, thiab H116), nws bendability txo, yuav tsum tau ib tug loj yam tsawg kawg nkaus khoov vojvoog kom tsis txhob tawg. Qhov no ua rau covO kubqhov feem ntau formable, thaum siab dua yuav tsum tau ntau zog thiab ua rau loj khoov radii.
5086 aluminiumtshwj xeeb tshaj yog zoo - haum raukev siv dej hiav txwv, zoo linkoj hulls thiab superstructures, vim nws cov kev sib xyaw ua ke zoo heev corrosion kuj nyob rau hauv seawater thiab zoo formability.
Cov yam tseem ceeb cuam tshuam rau bendability:
Kub: Lub temper ntawm aluminium cuam tshuam nws hardness. CovO kubyog qhov softest thiab feem ntau formable, thaum txias - hardened tempers nyiamH116thiabH32nyuaj thiab yuav tsum tau loj khoov radii.

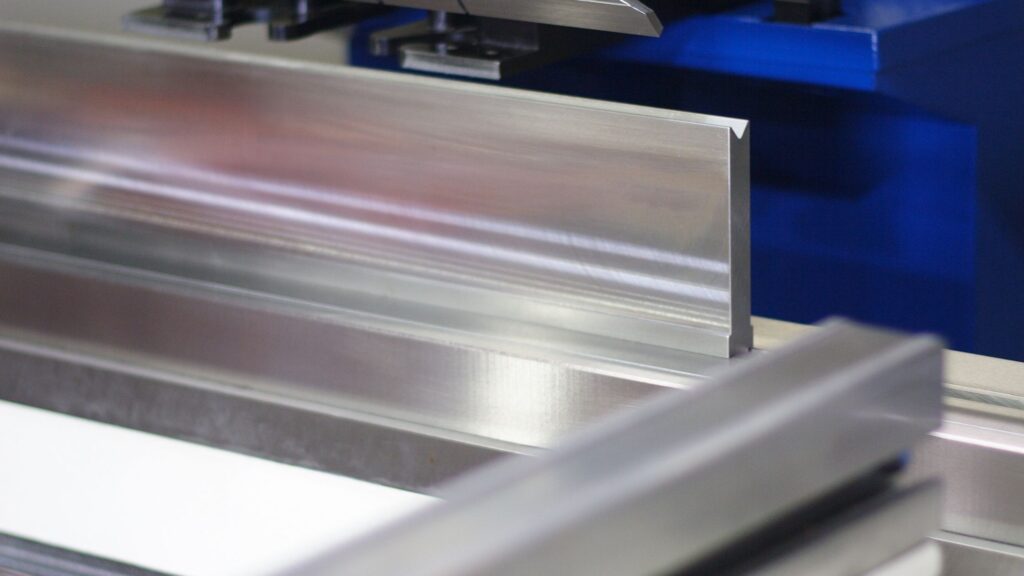

Thickness: Cov khoom siv tuab dua, qhov yuav tsum tau muaj zog ntau dua los khoov nws, thiab qhov loj dua qhov tsawg kawg nkaus khoov vojvoog. Piv txwv li, khoov"3/16" -cov ntaub ntawv tuabntawm 90º feem ntau xav tau anias nres.
NtawmGNEE, peb muab ntau yam ntawm5086 aluminiumcov khoom uas zoo tagnrho rau dabtsi yog khoov thiab tsim cov txheej txheem nyob rau hauv marine thiab lwm yam kev lag luam kev siv, kom ntseeg tau siab zog, durability, thiab corrosion kuj.
Marine 5086 txhuas ntawv thiab phaj yog tshwj xeeb rau kev siv nkoj nkoj, nrog ntau yam khoom zoo kawg. These aluminum components have a low density, making them lightweight and useful in shipbuilding, improving fuel efficiency, and boosting payload capacity. Nrog lub zog tensile zoo thiab elongation, lawv tuaj yeem tiv taus cov khoom loj thiab muaj zog muaj zog ntsib ntawm cov nkoj decks.
Tsis tas li ntawd, txhuas 5086 muaj kev tiv thaiv corrosion zoo heev, ua kom ruaj khov nyob rau hauv cov xwm txheej marine hostile. Nws lub zog nruab nrab thiab zoo dua weldability nce nws qhov tsim nyog, ua rau nws yog qhov kev xaiv nrov rau marine- qib txhuas daim hlau ntawm lub nkoj decks.
Cov5086 txhuas ntawv thiab phajmuaj nyob rau hauv ob peb tempers kom tau raws li cov kev cai thov. Feem ntau siv tempers rau5086 aluminiumyogO, H111, H112, H116, thiabH321.
O Temper: CovO kubhais txog tag nrho annealed aluminium, uas yog daim ntawv softest, muab siab tshaj formability tab sis nrog lub zog qis tshaj. Nws yog qhov zoo tagnrho rau cov ntawv thov uas xav tau siab formability tab sis lub zog tsis yog qhov tseem ceeb.
H111 Kub: CovH111 kubyog kev ntxhov siab-relieved, ua tiav los ntawm kev kho cua sov. Nws muab kev txhim kho lub zog thiab corrosion tsis kam ntawm lubO kub, ua kom nws zoo - haum rau kev siv dej hiav txwv.
H112 Kub: CovH112 kubzoo ib yam liH111, muab piv rau lub zog thiab corrosion kuj, tab sis nws yog tsim tshwj xeeb rau txhuas daim hlau. Nws muab zoo formability thiab weldability rau marine daim ntaub ntawv.
H116 Kub: CovH116 kubyog strain-hardened, muab cov khoom zoo heev nrog lub zog siab thiab zoo corrosion kuj. Nws yog feem ntau siv rau kev siv dej hiav txwv uas yuav tsum tau ua kom muaj zog thiab kav ntev.
H321 Kub: CovH321 kubyog ib qho mob stabilized tiav los ntawm strain hardening thiab dag dag. Nws muaj lub zog zoo heev, tiv thaiv corrosion, thiab tawg tsis kam, ua rau nws zoo tagnrho rau kev siv marine tseem ceeb.
Tshuaj muaj pes tsawg leeg ntawm Aluminium 5086:
| Lub ntsiab | % los ntawm Nyhav |
|---|---|
| Al | Residual kom muaj nuj nqis |
| Si | Tsawg dua lossis sib npaug li 0.40% |
| Cu | Tsawg dua lossis sib npaug li 0.10% |
| Mg | 3.5 - 4.5% |
| Zn | Tsawg dua lossis sib npaug li 0.25% |
| Mn | 0.20 - 0.7% |
| Ti | Tsawg dua lossis sib npaug li 0.15% |
| Cr | 0.05 - 0.25% |
| Fe | Tsawg dua lossis sib npaug li 0.500% |
Mechanical Properties ntawm Aluminium 5086 (Temper- tshwj xeeb):
| Kub | Tensile zog (KSI) | Yield Strength (KSI) | Elongation (%) |
|---|---|---|---|
| O | 44 | 14 | 16 |
| H32 | 47 | 28 | 12 |
| H112 | 35 | 14 | 14 |
| H116 | 40 | 28 | 10 |
NtawmGNEE, peb muab siab -zoo5086 aluminiumnyob rau hauv ntau yam tempers, xyuas kom meej cov khoom siv rau koj cov kev xav tau tshwj xeeb marine thiab industrial. Seb koj tab tom nrhiav rau superior zog nyob rau hauvH116los yog zoo heev formability nyob rau hauvOnpau taws, peb muab cov kev daws teeb meem kom tau raws li koj qhov project xav tau.
