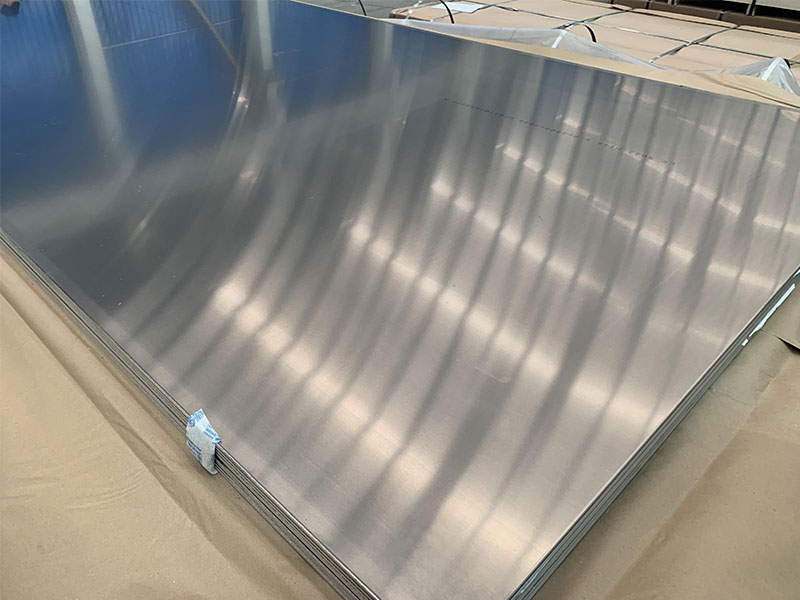

GNEE's marine-qib 5052 txhuas phaj yog cov khoom siv zoo tshaj plaws rau kev siv nkoj tsim. Lub ntsiab alloying ntsiab nyob rau hauv 5052 txhuas yog magnesium, uas muab kev ua tau zoo heev thiab kev ua tau zoo, superior corrosion kuj, zoo weldability, thiab nruab nrab lub zog. Cov yam ntxwv no ua rau GNEE 5052 txhuas daim hlau tsim nyog rau kev tsim khoom ntau yam nkoj xws li decks, cav hauv paus, sab hauv qab, thiab hauv qab daim hlau.
Thaum lub sij hawm tsim khoom, GNEE ua kom ntseeg tau tias txhua lub nkoj nkoj 5052 txhuas phaj tau dhau los ua kev tswj hwm zoo thiab kev ua haujlwm zoo los lav qhov raug qhov tseeb thiab qhov zoo ntawm qhov chaw uas ua tau raws li cov qauv kev tsim khoom. Txhawm rau kom ntseeg tau tias muaj kev ntseeg siab thiab ua haujlwm ntev, cov phaj yuav raug rau ntau qhov kev tshuaj xyuas thiab kev sim, suav nrog kev khoov, tensile, thiab kev ntsuam xyuas cuam tshuam. Raws li qhov tshwm sim, GNEE 5052 marine aluminium phaj tau lees paub tias yog qib siab - zoo, siab - cov khoom ua tau zoo- haum rau kev tsim kho nkoj thiab kho cov haujlwm.
Kev ua tau zoo ntawm GNEE Marine 5052 Aluminium Phaj
Mechanical Properties:
GNEE 5052 marine aluminium phaj muaj lub zog tensile thiab yield zog, tswj kev ruaj ntseg nyob rau hauv ntau yam kev ntxhov siab thiab deformations thaum lub sijhawm ua haujlwm nkoj. Nws zoo heev plasticity thiab toughness kuj ua rau nws yooj yim rau kev tsim thiab txheej txheem, cia nws nqus shocks thiab vibrations zoo. Qhov no txhim kho ob qho tib si kev nyab xeeb thiab kev ruaj ntseg ntawm cov nkoj.
Corrosion Resistance:
Ib qho tseem ceeb tshaj plaws ntawm GNEE 5052 txhuas phaj yog nws qhov zoo tshaj plaws corrosion kuj. Nws tuaj yeem tiv taus cov teebmeem corrosive ntawm seawater, chlorides, nitric acid, sulfuric acid, thiab lwm yam tshuaj feem ntau ntsib nyob rau hauv marine ib puag ncig. This superior resistance is due to the dense oxide film that naturally forms on its surface, which protects the metal from further oxidation and corrosion.
GNEE's Marine 5052 Aluminium Sheets yog cov hwm zoo-qib aluminium alloy nplooj ntawv tshwj xeeb tsim los rau marine thiab offshore daim ntaub ntawv uas xav tau superior corrosion kuj, zoo heev formability, thiab txhim khu kev qha mechanical zog. Nrog tshwj xeeb tiv thaiv dej hiav txwv thiab ntsev tsuag, GNEE 5052 txhuas ntawv yog dav siv nyob rau hauv shipbuilding, nkoj tsim, offshore platforms, thiab ntug hiav txwv dej infrastructure.
Raws li tsis yog -kub- kho tau, strain-hardened aluminium-magnesium alloy, 5052 yog tsim los ua haujlwm tshwj xeeb hauv cov dej ntsev thiab dej hiav txwv. Nws cov ntsiab lus magnesium siab thiab me me ntxiv ntawm chromium txhim kho ob qho tib si corrosion kuj thiab lub zog, ua rau nws muaj kev cia siab rau cov khoom siv ncaj qha rau hauv dej hiav txwv lossis ntug dej hiav txwv.
GNEE tsim Marine 5052 Cov Ntawv Txhuas los ntawm cov txheej txheem dov thiab ua tiav kom ntseeg tau tias cov tuab tuab, qhov tseeb, thiab qhov zoo. Cov nplooj ntawv no muaj nyob rau hauv ntau yam thicknesses, widths, thiab lengths kom haum ntau yam marine fabrication xav tau kev pab.
Nta thiab Cov txiaj ntsig
| Feature | Kev piav qhia | Cov txiaj ntsig |
|---|---|---|
| Zoo heev Corrosion Resistance | Kev tiv thaiv siab rau dej hiav txwv, dej hiav txwv cua, thiab ntsev tsuag vim magnesium alloying | Ntev ntev - tiv thaiv xeb thiab dej ntsev puas |
| Superior Formability | Zoo heev bending, dov, thiab shaping kev ua tau zoo yam tsis muaj cracking los yog lub zog poob | Enables complex marine designs thiab saj zawg zog fabrication |
| Zoo Mechanical Strength | Sib npaug tensile thiab yield zog rau cov qauv thiab tsis yog - siv cov qauv | Txhim khu kev ua tau zoo nyob rau hauv load thiab kev ntxhov siab |
| Weldability zoo heev | Tau tshaj SMAW, MIG, thiab TIG vuam nrog cov txheej txheem tsim nyog | Simplifies sib dhos thiab tu rau marine nkoj |
| Lub teeb | Tsawg ceev (~ 2.68 g / cm³) | Txo qhov hnyav tag nrho, txhim kho roj efficiency, thiab yooj yim tuav |
| Tsis yog-Magnetic & Tsis-Toxic | Muaj kev nyab xeeb rau qhov chaw rhiab thiab huv si | Haum rau kev ua zaub mov, kev kho mob, thiab kev siv dej hiav txwv |
| Zoo Fatigue Resistance | Khaws kev ncaj ncees nyob rau hauv cyclic loading | Zoo tagnrho rau dynamic thiab structural marine Cheebtsam |
Chemical Composition (%)
| Element | Cov ntsiab lus ntau |
|---|---|
| Magnesium (Mg) | 2.2 – 2.8 |
| Chromium (Cr) | 0.15 – 0.35 |
| Copper (Cu) | Tsawg dua los yog sib npaug li 0.1 |
| Hlau (Fe) | Tsawg dua los yog sib npaug li 0.4 |
| Silicon (Si) | Tsawg dua lossis sib npaug li 0.25 |
| Zinc (Zn) | Tsawg dua los yog sib npaug li 0.1 |
| Manganese (Mn) | Tsawg dua los yog sib npaug li 0.1 |
| Titanium (Ti) | Tsawg dua los yog sib npaug li 0.03 |
| Aluminium (Al) | Tseem tshuav |
Mechanical Properties
| Khoom | 5052-H32 | 5052-H34 |
|---|---|---|
| Tensile zog (MPa) | 228–271 | 229–272 |
| Yield zog (MPa) | 103–138 | 117–155 |
| Elongation (%) | 10–15 | 8–10 |
| Hardness (HB) | 60–75 | 70–80 |
| Qhov ceev (g / cm³) | 2.68 | 2.68 |
Kev tsim khoom thiab qhov ntau thiab tsawg
GNEE manufactures Marine 5052 Txhuas Sheets siv cov txheej txheem kub dov nyob rau hauv kev tswj xyuas nruj kom ntseeg tau tias zoo dua flatness, seem precision, thiab deg kev ncaj ncees.
Thickness:0.5mm - 10mm lossis customized
Dav:1000mm - 2000mm
Ntev:Customizable ib qhov project yuav tsum
Nto tiav:Mill tiav, anodized, los yog pleev xim rau kev xaiv muaj rau txhim kho kev tiv thaiv thiab zoo nkauj
Tej kev siv
Shipbuilding:Deck panels, roj tank, bulkheads, thiab hull plating
Nkoj Manufacturing:Cabin panels, flooring, thiab sab hauv partitions
Offshore Platforms:Txoj kev taug kev, tes tuav, lub thawv cia, thiab lub platform npog
Coastal Infrastructure:Cladding, signage, thiab teeb pom kev zoo panels
Cov khoom siv Marine:Cov twj tso kua mis, cov thawv ntim khoom, thiab cov dej tank
Khoom noj khoom haus & tshuaj ua:Zoo tagnrho rau kev tu cev thiab corrosion-sensitive siv
Corrosion Resistance thiab Kho
5052 txhuas cov ntsiab lus magnesium txhawb kev tsim cov oxide zaj duab xis ntom ntom, muab kev tiv thaiv zoo rau dej hiav txwv thiab dej hiav txwv.
Cov tswv yim tu:
Yaug nrog dej tshiab tsis tu ncua kom tshem tawm cov ntsev deposits.
Tsis txhob siv cov tshuaj hnyav los yog cov tshuaj abrasive uas ua rau cov txheej txheem oxide puas.
Tshawb xyuas ib ntus txhawm rau khawb lossis puas tsuaj thiab rov ua dua - yog tias tsim nyog.
Piv nrog rau cov hlau ib txwm siv, GNEE 5052 txhuas yuav tsum tau muaj kev saib xyuas tsawg tsawg thiab muaj qhov ntev - kav ntev nyob rau hauv hnyav marine tej yam kev mob.
Fabrication Recommendations
Vuam:Tau tshaj 5xxx series cov txheej txheem; tsis xav tau preheating; post-weld kev kho cua sov tsis pom zoo.
Txiav:Haum rau laser, plasma, waterjet, los yog mechanical txiav rau huv, meej npoo.
Kev tsim:Zoo heev txias formability; zam kev khoov ntau dhau uas yuav ua rau tawg.
Koom nrog:Ua haujlwm zoo nrog marine - qib stainless hlau fasteners thiab rivets.
Xaus
GNEE's Marine 5052 Aluminium Sheets sib xyaw ua ke zoo dua corrosion kuj, zoo heev formability, thiab kev cia siab rau lub zog, ua rau lawv ib tug zoo tagnrho cov ntaub ntawv rau xav tau marine thiab ntug hiav txwv dej. Lawv lub teeb yuag, tsis yog - cov khoom sib nqus, thiab cov khoom siv ruaj khov ua kom muaj kev ua tau zoo hauv kev tsim khoom hauv nkoj, kev lag luam sab nrauv, thiab lwm yam lag luam.
Qhov ntau thiab tsawg, tempers, thiab tiav yog muaj. Rau cov lus qhia kev tshaj lij, tus nqi, lossis cov ntsiab lus xa khoom, thov hu rauGNEE - koj tus neeg muag khoom suav suav suavrau marine-qib aluminium solutions.
